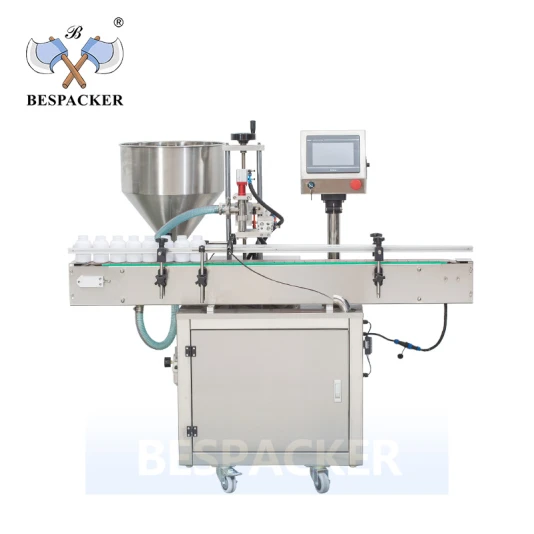

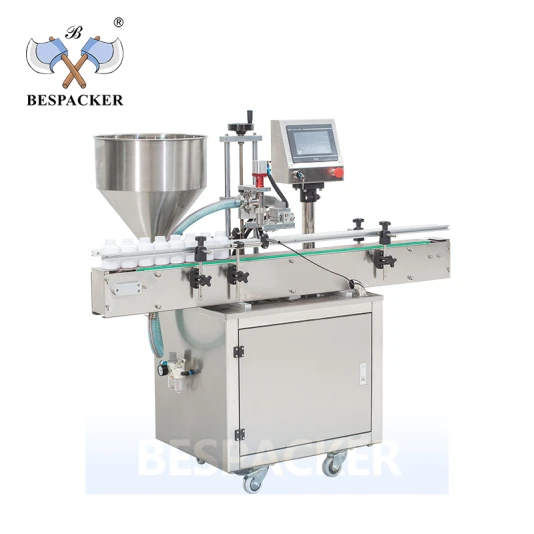

The Fully Automatic Single-Head Rotary Lobe Pump Filling Machine is a high-precision solution designed for handling viscous, suspended, and shear-sensitive products with ease. Containers are automatically fed onto the filling platform, which positions them precisely under the filling nozzle. The rotor pump, with its unique design of rotating lobes, gently transfers product from the hopper to the container, maintaining the integrity of particulates and preventing damage to delicate formulas. This fully automatic system ensures consistent fill volumes at high speeds with minimal operator intervention, making it ideal for manufacturers in the food, cosmetic, and pharmaceutical industries who require a combination of gentle handling, accuracy, and operational efficiency.
Feature:
Gentle Rotor Pump Action: Ideal for products with chunks, fibers, or high viscosity; delivers a smooth, non-pulsating flow that preserves product integrity.
Exceptional Accuracy: Provides highly repeatable fill volumes for both thick and thin liquids, minimizing product giveaway and ensuring cost control.
Fully Automatic Operation: Integrates automatic container feeding, filling, and output for a streamlined, labor-efficient production line.
Hygienic & Easy to Clean: Constructed with stainless steel (SS304/316) contact parts and designed with quick-disassembly capabilities for fast changeover and cleaning.
User-Friendly PLC Control: An intuitive touchscreen interface allows for easy setup, storage of filling parameters.
Robust Construction: Built for durability and long-term reliability in demanding production environments.

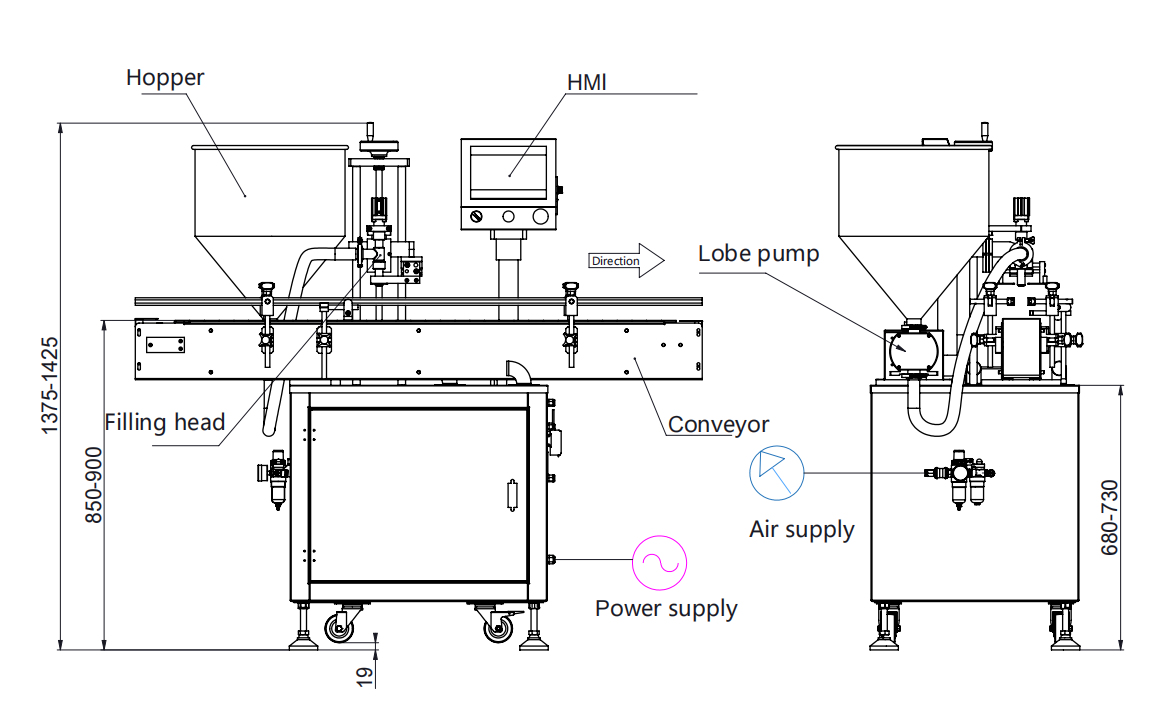

Drawings:
Technical Parameter:
Work air pressure | 0.4-0.6Mpa |
Power supply | 220V, 50HZ/60HZ, 0.9KW |
Hopper volume | 40L |
Filling accuracy | ±1% |
Rotor pump flow rate | 20L/min |
Capacity | 35PCS/min (200ml）*only for reference |
Machine size | L150 x W65.5 x H137.5-142.5cm, 120kg |
Rotor Pump Options:
|

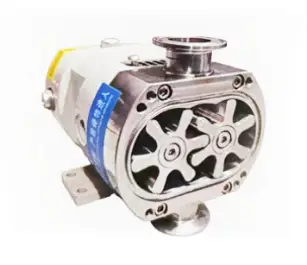

Tri-lobe Rotors A common, general-purpose design that is good for clean mediums and can handle a higher volume than bi-wing models. |
|

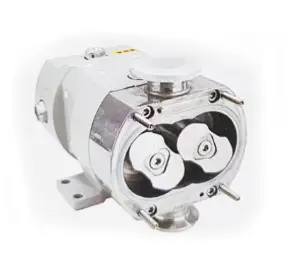

Bi-wing Rotors A two-lobe design that provides a smooth, consistent flow and is suitable for viscous fluids with solids. |
|

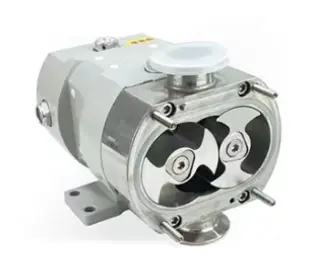

Two-lobe Rotors This type is suitable for liquids with low hardness particles. |
|
Multi-lobe Rotors This offer increased stability and accuracy, with the ability to be used for metering when the number of impellers is high. |
Application:
Food & Beverage: Tomato pastes and sauces with chunks, fruit jams and preserves, yogurt with fruit pieces, mayonnaise, honey, syrups, and thick dressings.
Cosmetics & Personal Care: Lotions and creams, shampoos and conditioners, gels (hair, shower), ointments, serums, and toothpaste.
Pharmaceuticals: Topical creams and ointments, gel-based medications, liquid suspensions, and disinfectant gels.
Chemicals & Household: Adhesives, sealants, lubricating greases, thick cleaning gels, and pastes.
