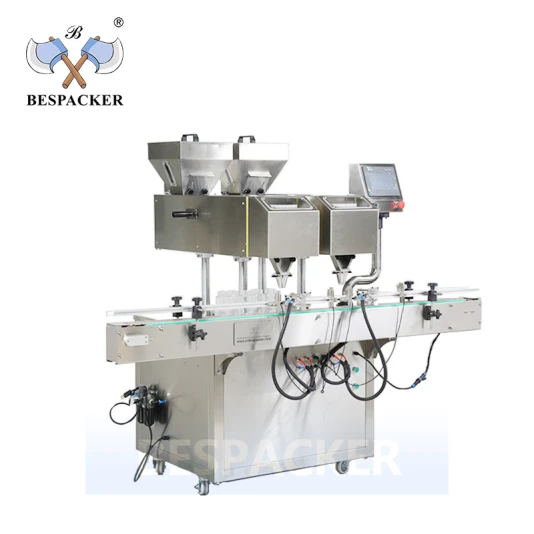

Product Overview

The XKYL-16 is a state-of-the-art 16-channel automatic counting machine engineered for high-speed, high-precision counting and filling of solid dosage forms such as tablets, capsules, softgels, and gummy vitamins. As a versatile automatic counter, this advanced system leverages multiple counting channels to dramatically increase throughput while maintaining exceptional accuracy. Designed for seamless integration into pharmaceutical, nutraceutical, and food packaging lines, this automatic counting machine ensures reliable performance, minimal product damage, and rapid changeovers. Whether handling small tablets or large capsules, the XKYL-16 serves as a premier capsule counting machine and tablet counting solution, delivering consistent output for manufacturers demanding efficiency and precision.

Features

1. 16 High-Speed Counting Channels

   • Equipped with 16 independent counting channels for simultaneous operation, achieving speeds up to 6,000 tablets or capsules per minute (depending on product size).

   • Significantly boosts production capacity compared to single- or few-channel counters, reducing bottleneck in packaging lines.

2. Advanced Photoelectric Sensing Technology

   • Utilizes high-precision photoelectric sensors (or optional machine vision) for accurate automatic counting, even with dusty or colored products.

   • Detects and rejects double counts, missing items, or broken tablets automatically.

3. Fully Automatic Operation

   • Complete automatic counting machine with touchscreen HMI for easy setup and monitoring.

   • Automatic bottle feeding, filling, and discharge integration; “no bottle, no fill” function prevents waste.

   • Recipe storage for multiple product types, enabling quick changeover without reprogramming.

4. Versatile Product Handling

   • Suitable for a wide range of solid products: tablets (round, oval, irregular), capsules (hard/soft), caplets, lozenges, and gummies.

   • Adjustable channel width and vibration intensity to accommodate different shapes and sizes without mechanical change parts (tool-less adjustment available).

5. Gentle & Damage-Free Counting

   • Linear vibratory feeders convey products smoothly to counting channels, minimizing friction and impact.

   • Ideal for delicate or coated tablets, ensuring product integrity throughout the counting process.

6. Hygienic & Easy-to-Clean Design

   • Quick-release hopper, channels, and collection chutes for fast disassembly and cleaning between batches.

   • Smooth surfaces prevent product accumulation and cross-contamination.

7. Intelligent Control & Monitoring

   • Multi-language support, data logging, and network connectivity (Ethernet, USB) for integration with plant management systems.

   • Self-diagnostic system with alerts for low product, channel jams, or sensor faults.

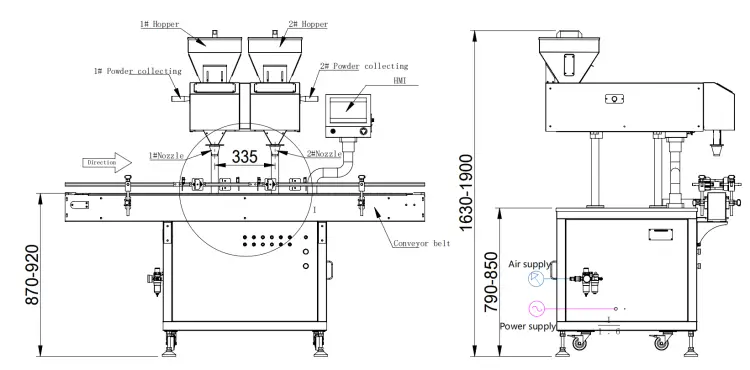

Drawings

Technical Parameters

Main configuration list:

Application

The XKYL-16 16-channel automatic counter is widely used across industries requiring precise, high-speed counting and filling of solid oral dosage forms:

• Pharmaceutical Industry

  • Counting tablets and capsule counting machine applications for prescription drugs, OTC medicines, and clinical trial supplies.

  • Filling bottles, blisters, or pouches with accurate counts, ensuring patient safety and regulatory compliance.

• Nutraceutical & Dietary Supplements

  • Counting vitamins, minerals, herbal tablets, softgels, and gummy vitamins.

  • High-speed filling of supplement bottles, jars, and sample packs.

• Food & Confectionery

  • Counting candies, mints, chewing gums, and other edible products into containers.

  • Suitable for small, uniform food items requiring gentle handling.

• Cosmetics & Personal Care

  • Counting cosmetic tablets (e.g., bath bombs, effervescent tablets) into jars or bags.

• Industrial & Chemical

  • Counting solid chemical pellets, catalysts, or small hardware items where precise quantity is required.

Why Choose XKYL-16?

1. Highest Throughput: 16 channels allow unparalleled speed for large-scale production.

2. Unmatched Accuracy: Advanced sensors and logic ensure correct counts every time.

3. Flexibility: Handles tablets and capsules without tooling changes; easy adjustments.

4. Reliability: Built with premium components and backed by comprehensive support.
